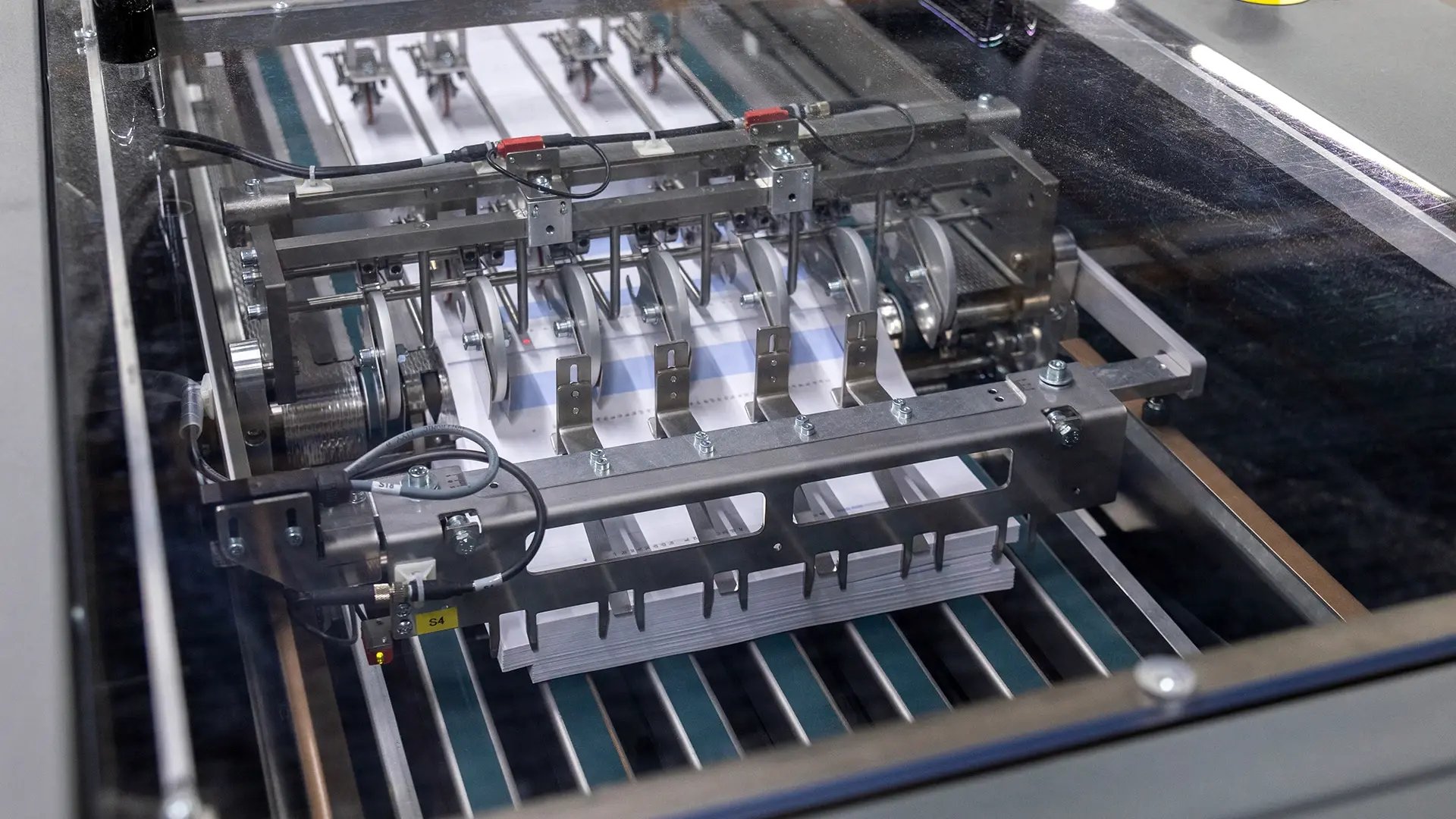

• Stack 1212 B2 Sheet Fed Cut & Stack Machine

    Sheetfed



    B2 Sheetfed Cut & Stack

    Stack 1212

Stack_5x50_3D_001_Web-1600x950_crop

Convert multi-up output from your B2+ color digital press into smaller, stacked finished pages without guillotine cutting.

Key Benefits


  • Minimizes finishing labor

  • All cutting done in a single pass

  • Supports 1-up to 21-up impositions

  • Easy operator change-over between jobs

  • Space-efficient design

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


Brett Keene, CEO, Suttle-Straus

Read the Case Study

Tecnau’s Stack 1212 reduces manual print handling and consolidates labor-intensive finishing operations in a single-pass automated process.


For applications from letters, books, and marketing brochures, to postcards and posters, Stack 1212 slits, cuts, trims, removes gutters/bleeds and stacks output, allowing users to process sheets in cost-effective multiple-up impositions without further offline finishing.

Stack 1212’s cartridge-based cross-cut and slitter design allows the operator to quickly change from one job to another. Convert from a bleed or non-bleed postcard application (as small as 4” x 5”) to a large poster application in a minute or two in a simple intuitive process.

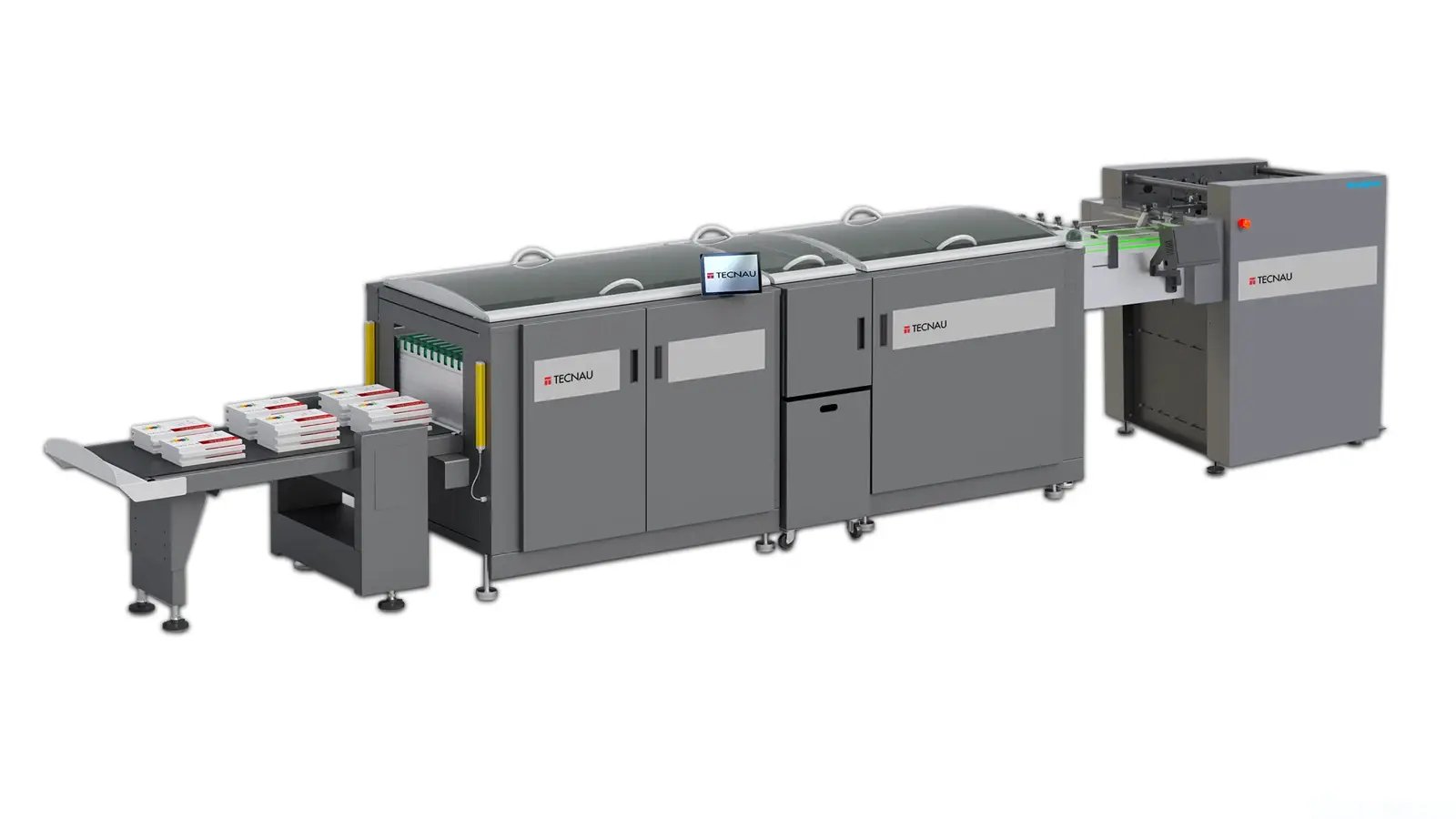

Stack 1212

Technical Specifications


Specifications
Speed max. Up to 6000 B2 sheets/hour (paper, format and application dependent)
Paper weight 70 – 350 gsm, 45# text – 130# cover
Input width 297 – 533.4 mm, 11" – 21"
Input length 210 – 750 mm, 8" – 29.5"
Output width 1-up: 210 – 533.4 mm, 8" – 21", 2-up: 127 – 267 mm, 5" – 10.5", 3-up: 127 – 178 mm, 5" – 7"
Output length 102 – 508 mm, 4" – 20"
Edge trimming 5 – 24 mm, 0.2" – 0.95", up to 50 mm (2") with special cartridge
Imposition Above 18-up as a special, Single/full bleed from 1- to 21-up
Gutter cut 6.35 – 12.7 mm ≈ 0.25” – 0.5" (Up to 25.4 mm with application review)
Output options 1-up, 2-up, 3-up
Stack height 250 mm ≈ 10" ≈ 2000 sheets
Offset 15 mm ≈ 0.6"

Optional Capabilities


Tecnau Connect

This software control package keeps track of all processed sheets and reports missing pages from each job to control re-prints and complete customers’ orders. Internet of Things compatible control enhancements are also available for remote monitoring and diagnostics, automatic software updates, preventive maintenance aids and database analysis.

Product Documentation


 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

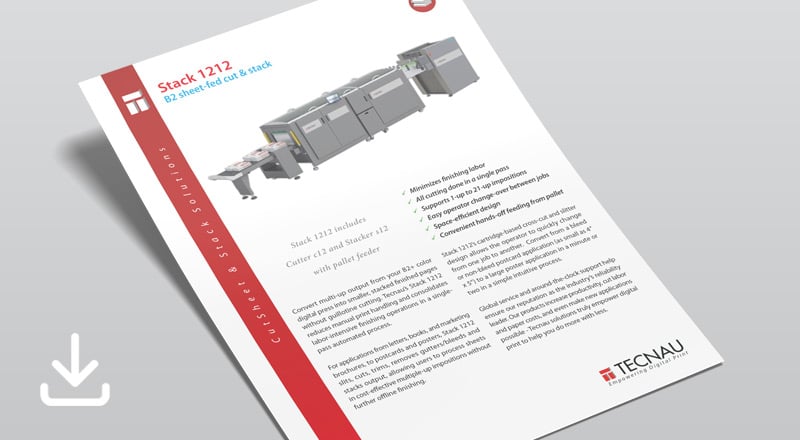

Stack 1212 product brochure
