Sheet Punching TC 1530 P

Sheet Punching TC 1530 P

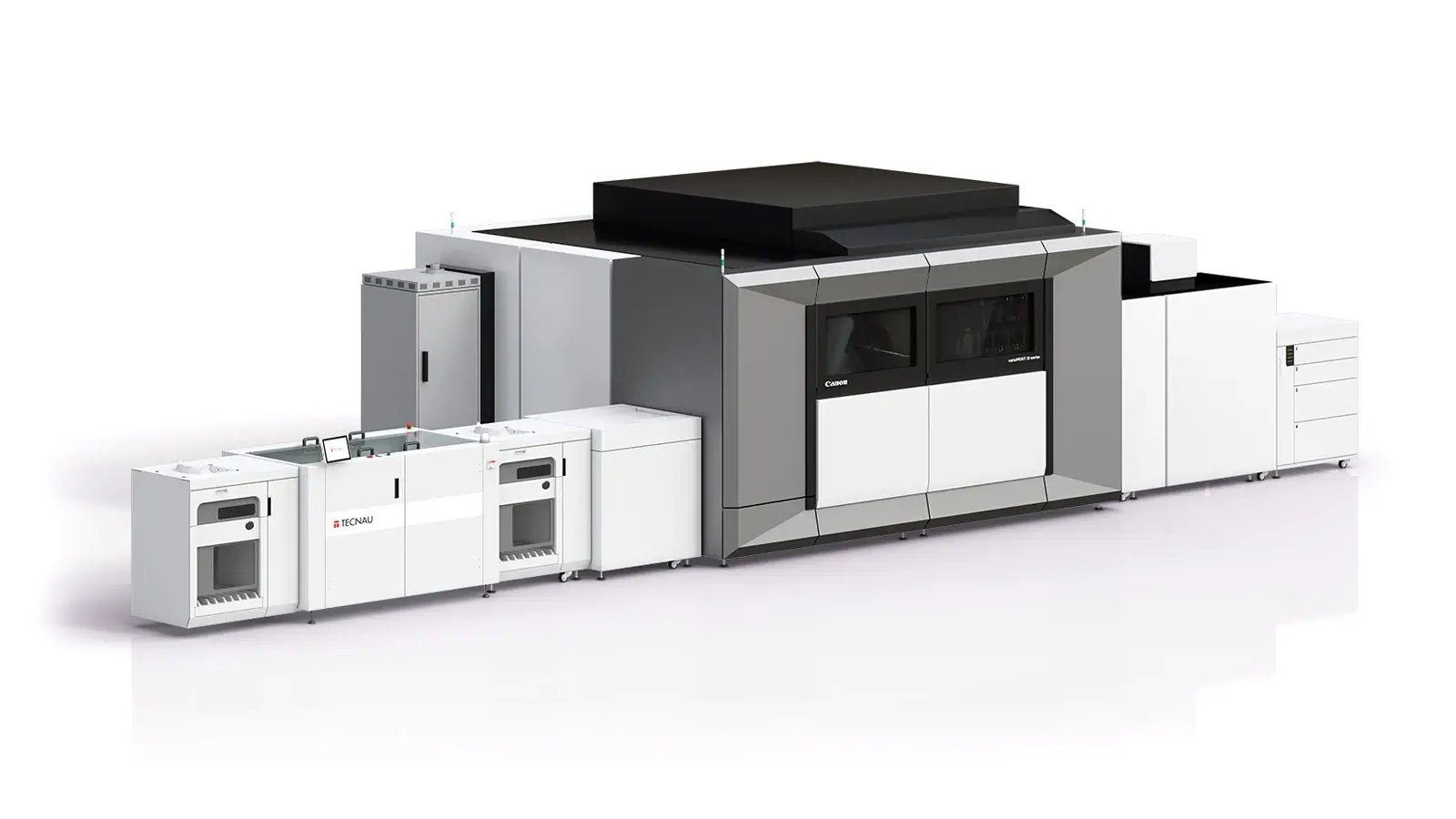

The TC 1530 C 1/2 has been designed to execute dynamic cross and vertical perforations on printed sheets and deliver them to an high capacity stacker.

  • Dynamic file hole punches
  • Loose leaf and comb/coil/spiral
  • Operator-friendly punch cassettes
  • Field upgradable

Punch loose-leaf ring binder pages or coil and comb bind pages in-line with your Océ VarioPrint i-series sheet-fed inkjet color presses from Canon. The TC 1530 P dynamic sheet processor creates on-demand hole punches, yielding user-friendly documents for your customer and application flexibility for you.

The TC 1530 P series features an operator-friendly punch cassette design, for easy application changeovers and highly accurate punching. Choose from dynamic punching models with one or two punch stations to best match your needs – the two station TC 1530 P2 model allows automated job changeover from one punch pattern to another with no operator intervention.

The base TC 1530 P1 model is field upgradable (hardware and software) to the two station TC 1530 P2. Your investment decision today is secured to support the growing job spectrum of tomorrow. A 2D Datamatrix on each page triggers punching as required page by-page within your job.

Weight 1000 kg
Dimensions 1355 × 950 × 1088 mm
Speed max.

Paper Weight

Form width

Form Length

Min punch repeat

170 mm (6.75") with 1 cartridge
85 mm (3.375") with 2 cartridges
(with 2 cartridges, 2 punches may be infinitely close, but the next pair must be at least 6.5” away)

Punch hole pattern

2-, 3-, 4-, 5-file hole punch, or varying spiral/coil binding hole punches – custom punches are available

Spiral/coil bind

19, 32, 44-hole punch (others on request)

Punch Hole Diameter

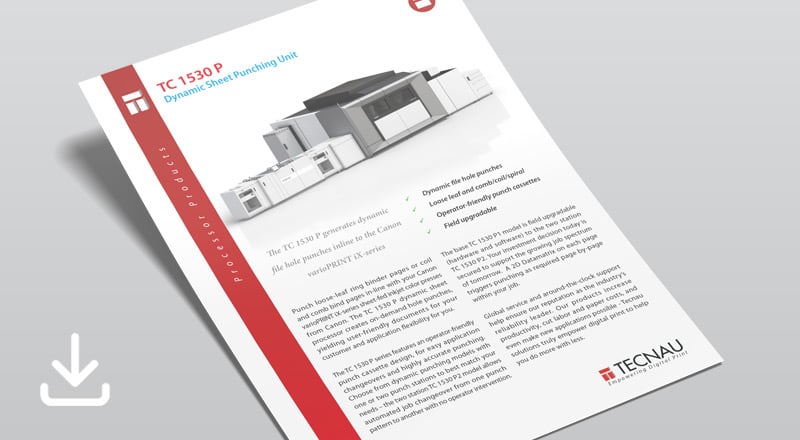

TC 1530 P Canon Brochure A4
