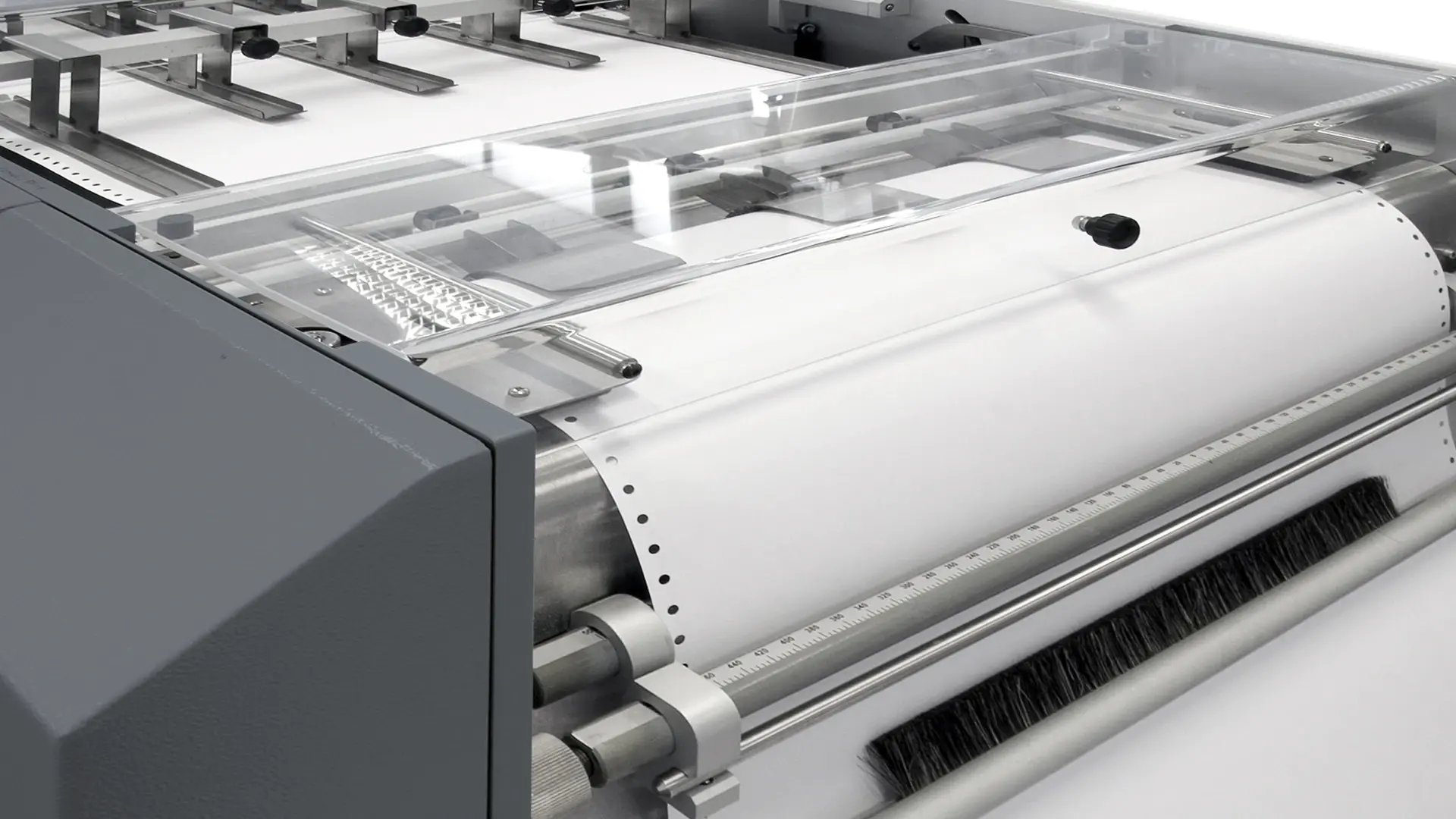

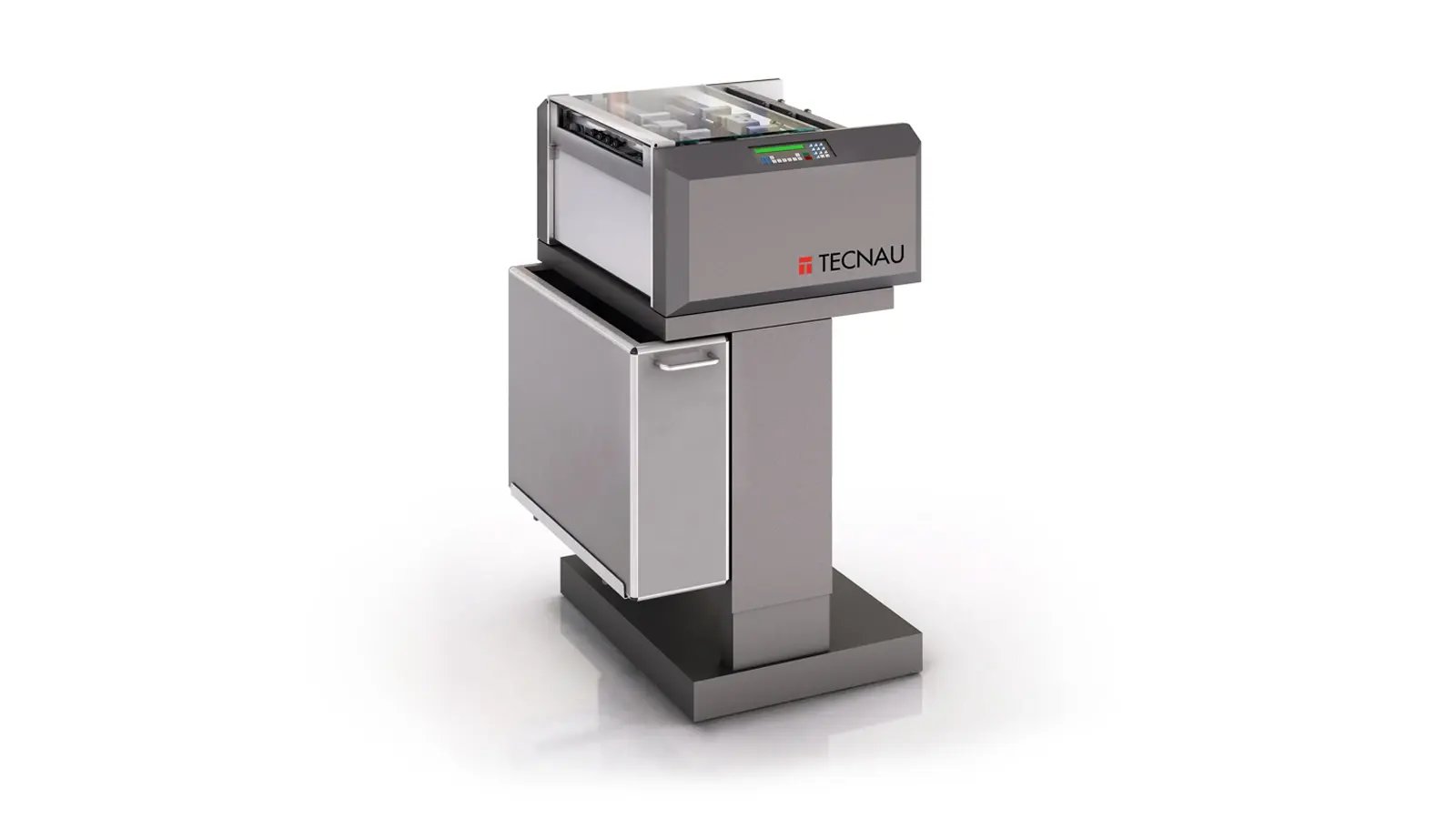

Cutter Simpla TC 1000

Home/Stand-Alone Cutters, Cutters/Cutter Simpla TC 1000

Cutter Simpla TC 1000

Icon_Cut_Stack

  • Available in three speed versions
  • Modular configuration, stand alone, cut & stack, cut & fold
  • Single or double cut with interchangeable cartridges
  • Guillotine technology, pinfed only

The High Speed Cutter, Simpla TC 1000 Series is available in three speed versions:

TC 1000, speed up to 100 m/min – up to 20.000 cuts per hour (12” height form)
TC 1000 F, speed up to 125 m/min – up to 25.000 cuts per hour (12” height form)
TC 1000 T, speed up to 180 m/min – Up to 36.000 cuts per hour (12” height form)

The TC 1000 series main features include:

  • Pinfed paper transport
  • Paper loop interface for direct connection to digital printers
  • Base on wheels with blocking device
  • Height adjustment paper level device
  • Up to 99 cutting program memory
  • Display and keyboard for programming, information, service

The TC 1000 cutters are equipped with a cross blade cartridges with single or double knife – for single cut and strip removal – to support a broad range of applications for monochrome and color printers. The cross blade cartridge and the side trimming cartridges are removable and interchangeable for quick and easy onsite maintenance and for quick application changeover.

Standard cross cartridges:

  • Oscillating cross blade cartridge with high precision (1/96”) and high durability
  • Vertical cross blade cartridge (3 blades system) for single stroke 1/6” strip cut
  • Vertical cross blade cartridge (3 blades system) for single stroke 7,8 mm strip cut

Tecnau cutters are based on modular groups, assembled with rigid metallic structures and high precision components that guarantee long life and easy maintenance. Tecnau cutters are generally integrated in complex systems and lines such as bookmaking systems, high performance inserters and finishing on demand applications thanks to their reliability and durability.

Speed max.

, ,

Feeding

Web width

,

Form width

,

Form Length

Trimming

Output Options

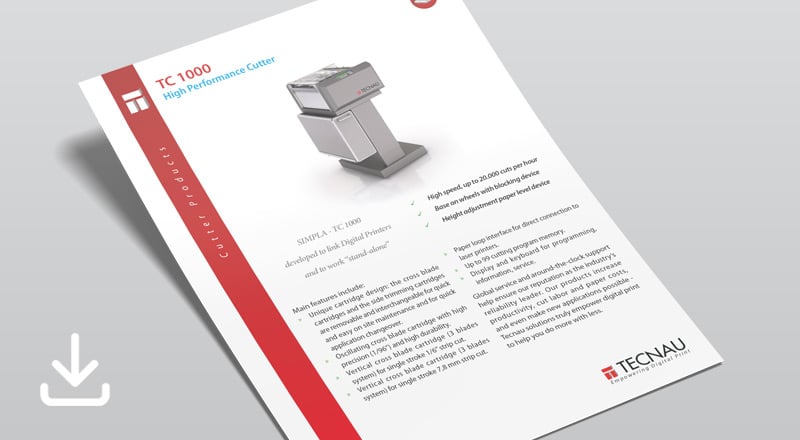

TC 1000 Brochure A4
